What Does AAMI Level 4 Actually Mean? The Essential Guide for Medical Procurement

AAMI Level 4 Decoded: The Gold Standard for Viral Barrier Protection

In the complex hierarchy of medical textiles, AAMI Level 4 acts as the critical watershed between "Liquid Barrier" and "Viral Penetration Resistance." For hospital administrators, procurement officers, and medical distributors, distinguishing between these two is not merely an academic exercise—it is a matter of life safety.

While AAMI Levels 1, 2, and 3 focus on resisting water spray and hydrostatic pressure, Level 4 is the only tier in the PB70 classification that explicitly requires passing the ASTM F1671 (or equivalent) viral penetration test. Consequently, it is widely regarded as the critical threshold for "viral blocking" in medical protection.

We decode the rigorous testing protocols, explore the microbiology of the test virus (Phi-X174), analyze the regulatory landscape, and explain the material science that makes viral protection possible. This is your essential guide to navigating the highest standards of protective apparel.

The AAMI PB70 Classification System: The Hierarchy of Safety

The Association for the Advancement of Medical Instrumentation (AAMI) established the ANSI/AAMI PB70 standard to create a common language for protective apparel. Before this standard, terms like "impervious" and "fluid-resistant" were used interchangeably, leading to confusion.

The standard classifies Isolation Gowns, Protective Apparel, and Drapes into four levels based on their barrier performance against fluid impact. Understanding the escalation of these levels is crucial for selecting the right product.

Level 1: Minimal Risk

Scenario: Basic care, standard isolation, visitor cover gowns.
The Test: AATCC 42 (Water Impact Penetration).
Requirement: The fabric must stop water spray (impact) from penetrating more than 4.5g.
Reality Check: It acts like a raincoat against a light drizzle. It is not designed to withstand pressure.

Level 2: Low Risk

Scenario: Blood draw, suturing, ICU standard nursing.
The Test: AATCC 42 + AATCC 127 (Hydrostatic Pressure).
Requirement: Must resist water spray AND withstand a hydrostatic pressure of at least 20 cmH₂O.
Reality Check: Can handle light splashing and minor pressure.

Level 3: Moderate Risk

Scenario: Arterial blood draw, ER trauma triage, inserting IV lines.
The Test: Same as Level 2, but stricter.
Requirement: Hydrostatic pressure resistance must exceed 50 cmH₂O.
Reality Check: Offers good resistance against soaking, but under heavy pressure (like leaning on a wet surface), liquid may still pass.

Level 4: High Risk (The Critical Watershed)

Scenario: Pathogen resistance, suspected infectious disease isolation, biohazard handling, and long, fluid-intensive procedures.
The Test: ASTM F1671 (Viral Penetration).
Requirement: The material must resist penetration by a bacteriophage (viral surrogate) under a specific time and pressure protocol.
Key Difference: Levels 1-3 test for Liquid Water; Level 4 tests for Viral Penetration.

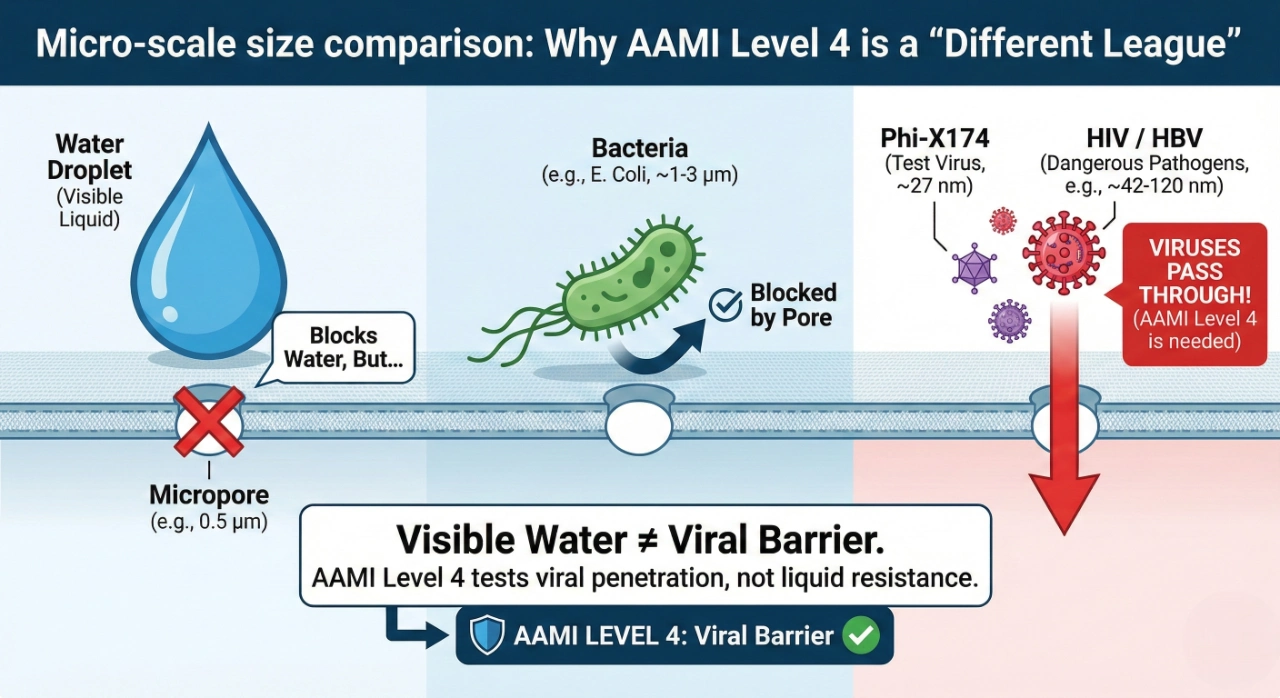

The Invisible Enemy: Why We Test for Viruses, Not Just Water

To understand the difficulty of achieving AAMI Level 4, one must first understand the "scale" of the threat. A fabric that blocks a visible water droplet can still be a superhighway for a virus.

The Scale of Microbes

Liquid Water Droplet: Exists on a micron-to-millimeter scale. Far larger than viral particles and significantly influenced by surface tension.
Bacteria (e.g., E. Coli): Approx. 1.0 – 3.0 microns. Large enough to be blocked by many standard nonwovens.
Viruses (e.g., Hepatitis B, HIV): Extremely small. Hepatitis B is approx. 42 nanometers (0.042 microns); HIV is approx. 120 nanometers.

A standard "waterproof" fabric might have micropores that are 0.5 microns wide. To a water droplet, that pore is a wall. To a virus, it represents a potential opening.

Enter Bacteriophage Phi-X174

The ASTM F1671 test uses a specific microorganism called Bacteriophage Phi-X174.

Why this virus? It is one of the smallest known non-enveloped viruses (approx. 27 nm), making it an extremely rigorous challenge model.
The Logic: If a material can prevent the penetration of Phi-X174 (27 nm) under pressure, it provides high statistical confidence that it can block larger dangerous pathogens like HIV (120 nm), Hepatitis C (50 nm), and SARS-CoV-2.
The Standard: AAMI Level 4 is not about blocking "most" viruses. It is about blocking the smallest ones under pressure.

The Gold Standard: Deep Dive into ASTM F1671 Testing

When a supplier claims their isolation gown or coverall is "AAMI Level 4," they are claiming it passed ASTM F1671. This is considered the "Gold Standard" of medical textile testing. Here is what happens inside the lab:

Step 1: The Challenge Liquid

The test does not use blood. Blood is thick (viscous) and creates clots that can plug holes. Instead, the test uses a nutrient broth with a surface tension of 42 ± 2 dynes/cm. This lower surface tension makes the liquid "wetter" and harder to block than blood. This liquid is spiked with millions of Phi-X174 bacteriophages.

Step 2: Time and Pressure Profile

The fabric sample is placed in a specialized penetration cell. The viral liquid is placed against the fabric. The test is not static; it simulates the dynamic pressures of real-world use:

5 minutes at atmospheric pressure (0 psi).
1 minute at 2 psi (13.8 kPa). This simulates a healthcare worker leaning, kneeling, or pressing against a contaminated surface.
54 minutes at atmospheric pressure (0 psi). Total test time: 1 Hour.

Step 3: Biological Assay & Determination

After the test, technicians inspect the "dry side" of the fabric. Since Phi-X174 kills bacteria, if any virus penetrated the fabric, it will infect the bacteria in the culture dish and create visible "plaques" (clear dead spots).

The judgment criteria are strictly binary:

FAIL: If even a single viral plaque is detected, the material is deemed unsafe and fails the test.
PASS: The culture must show zero plaques (no viral penetration) to be judged as passing.

Conclusion: AAMI Level 4 mandates Zero Tolerance. Unlike other standards that allow for small margins of error, this test requires verified impermeability under test conditions.

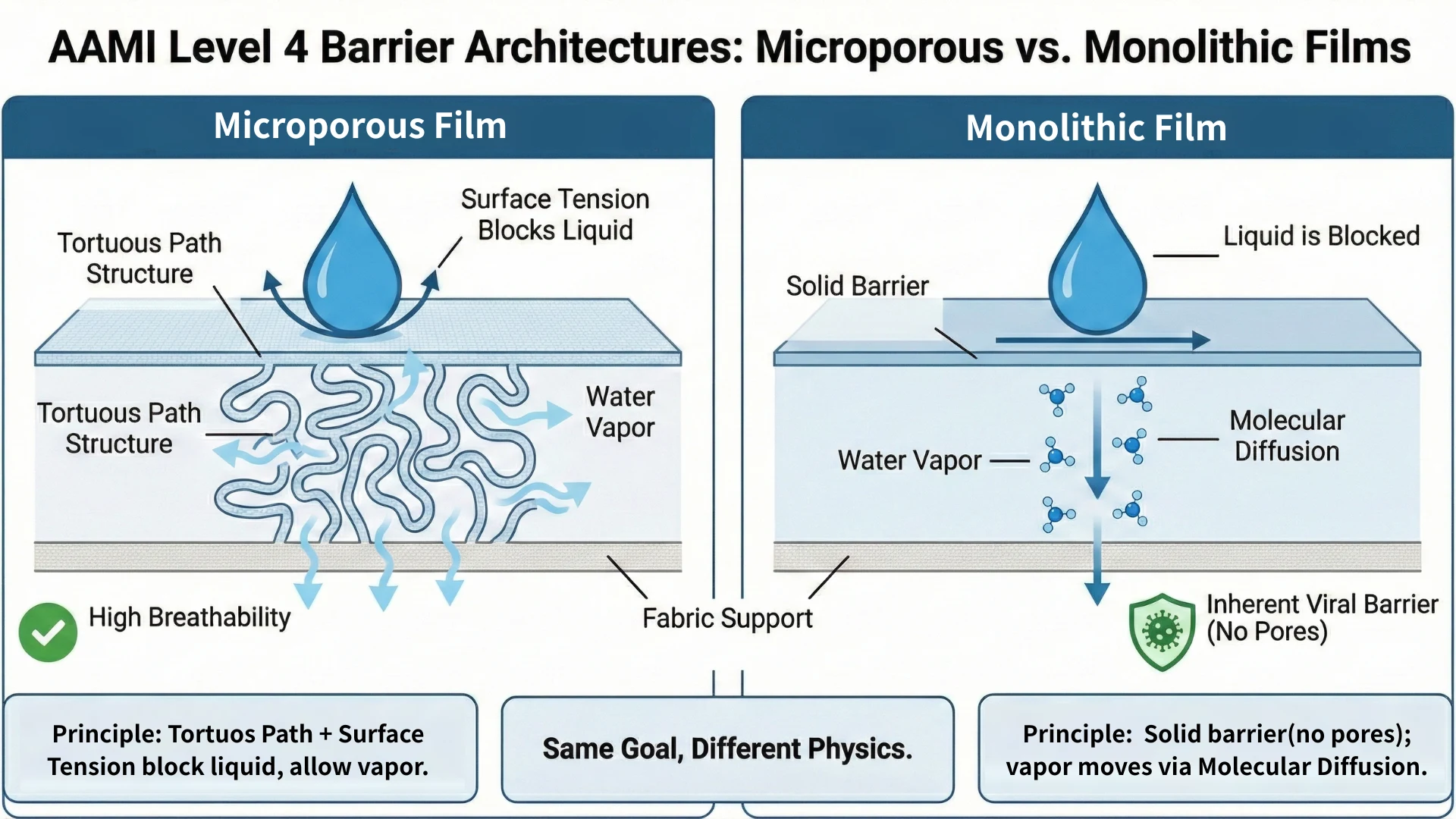

Material Science: How to Build a Virus-Resistant Wall

Standard textiles generally cannot pass ASTM F1671 on their own. Their pore structures are too large and irregular. To achieve Level 4, manufacturers must utilize Advanced Lamination Technology.

Technology A: Monolithic Films (The Solid Barrier)

This is the technology behind Kae Hwa’s AquaVene™ series.

Structure: Solid, non-porous hydrophilic film.
Mechanism: It creates a solid wall of polymer with no physical holes. Moisture vapor (sweat) is transported via molecular diffusion through the polymer chains themselves.
Viral Performance: Since there are no pores, there is no direct pathway for a virus to traverse. It is inherently impervious.
Advantage: Extremely high reliability under pressure, ideal for Protective Coveralls.

Technology B: High-Grade Microporous Films

This is the technology behind Kae Hwa’s MicroBreath™ series.

Structure: A film filled with calcium carbonate particles that is stretched to create millions of microscopic paths (pores).
Mechanism: These films do not rely solely on simple sieving (pore size). Instead, they rely on a Tortuous Path structure and Surface Tension. The path through the film is so winding and complex, and the pore size is controlled, that the liquid's surface tension prevents it from penetrating—even under pressure.
Viral Performance: To pass Level 4, these films must be manufactured with extreme consistency (like Kae Hwa’s Casting Film process) to avoid "macropores" or defects that would allow liquid breakthrough.
Advantage: Generally offers higher breathability (airflow), enhancing comfort for Isolation Gowns.

The Critical Role of Lamination

The film provides the barrier, but the Lamination provides the strength. Kae Hwa utilizes In-Line Lamination to fuse the film and fabric together. Weak lamination can lead to delamination during use. If the film peels away, the barrier is compromised.

Regulatory Context: FDA, CE, and Global Compliance

For procurement officers, the "Level 4" claim must be backed by regulatory clearance.

USA: FDA 510(k) Clearance

In the United States, Isolation Gowns used in high-fluid exposure settings are typically classified as Class II Medical Devices.

Manufacturers often need to submit a 510(k) Premarket Notification or strictly adhere to product codes.
The technical file must include the full ASTM F1671 test reports.
Tip for Buyers: Ask for the accredited lab report validating the viral claim.

Europe: CE Marking (MDR/PPE)

Under the European PPE Regulation (EU 2016/425):

Protective clothing against infectious agents must meet EN 14126.
The test method used is ISO 16604, which is virtually identical to ASTM F1671 (using the same Phi-X174 virus).
Tip for Buyers: Look for the "-B" suffix (e.g., Type 4-B) and "EN 14126" compliance on the label.

The Economics of Safety: Total Cost of Ownership

Why should a facility pay a premium for certified AAMI Level 4 apparel? The answer lies in the Economics of Safety.

The Cost of Occupational Exposure

If a frontline worker contracts a blood-borne virus or infectious disease due to gown failure (strike-through), the liability costs, treatment costs, and workforce shortages far exceed the savings of buying a cheaper, lower-level gown.

The Cost of Comfort

Protection cannot come at the expense of performance. A worker wearing a plastic bag will overheat. High-quality Level 4 materials (like MediShield™) balance Impermeability with Breathability (MVTR). Investing in breathable Level 4 materials reduces heat stress, keeping the team focused and efficient.

Procurement Checklist: Verifying Level 4 Claims

Not all products labeled "Level 4" are created equal. Use this technical checklist to verify the supplier's claims.

Test Report Verification:
- □ Request the full ASTM F1671 report.
- □ Verify the date and the laboratory (must be accredited, e.g., Nelson Labs, SGS).
- □ Ensure the report explicitly states "PASS" with "Zero Plaques Detected."
Critical Zone Validation:
- □ For finished gowns/coveralls, verify that the Critical Zones are the areas that passed the Level 4 test.
- □ Seams Matter: To maintain Level 4 protection in critical zones, seams typically need to be sealed or taped. Simple stitched seams are potential leakage points.
Material Construction:
- □ Ask the supplier: "Is this a Microporous or Monolithic membrane?"
- □ Ask about the lamination method. In-Line Lamination (like Kae Hwa’s) is preferred for structural integrity.
Breathability Data:
- □ Request the MVTR (Moisture Vapor Transmission Rate) data. Values can vary by test method (e.g., ASTM E96 vs. JIS L1099), so confirm the standard used for consistent comparison.

Protection Without Compromise

AAMI Level 4 is more than a certification; it is a promise. It is the promise that in a high-risk isolation zone or a biohazard environment, the barrier between the worker and the hazard will hold.

At Kae Hwa Industrial, we understand the weight of this promise. Our MediShield™ series is engineered specifically to meet these rigorous standards. By combining our precision Casting Film with AAMI-compliant lamination technology, we deliver materials that offer the highest level of viral defense without sacrificing the comfort professionals need.

When the risk is invisible, your protection must be absolute. Let’s build safer protective fabrics—starting with AAMI Level 4–validated materials.

FAQ

Q1: Is AAMI Level 4 the same as "sterile"?

No. "Sterile" refers to the absence of living organisms on the gown when you open the package. "Level 4" refers to the material's ability to block viruses during use. Isolation gowns and coveralls can be Level 4 but sold non-sterile.

Q2: Can I wash and reuse AAMI Level 4 garments?

A2: Generally, no. Most Level 4 apparel using Microporous or Monolithic Films is designed for single-use. Industrial washing cycles can damage the microscopic film layer or the lamination bond, compromising the barrier. Always check the manufacturer's Instructions for Use (IFU).

Q3: What is the difference between ASTM F1670 and F1671?

A3:

F1670 uses synthetic blood. It tests for liquid penetration (visual detection).
F1671 uses a viral surrogate (Phi-X174). It tests for viral penetration (biological assay).
Rule of Thumb: If it passes F1671, it automatically passes F1670. But passing F1670 does not mean it is viral-proof. Level 4 requires F1671.

Q4: Does Kae Hwa supply finished protective garments?

A4: Yes. While we are a premier manufacturer of technical roll goods, we also offer complete OEM/ODM solutions for finished garments. Through our vertically integrated supply chain and certified converting partners, we supply fully certified AAMI Level 4 Isolation Gowns and Protective Coveralls. This allows us to ensure Total Quality Control from the raw polymer resin all the way to the final sealed seam.
